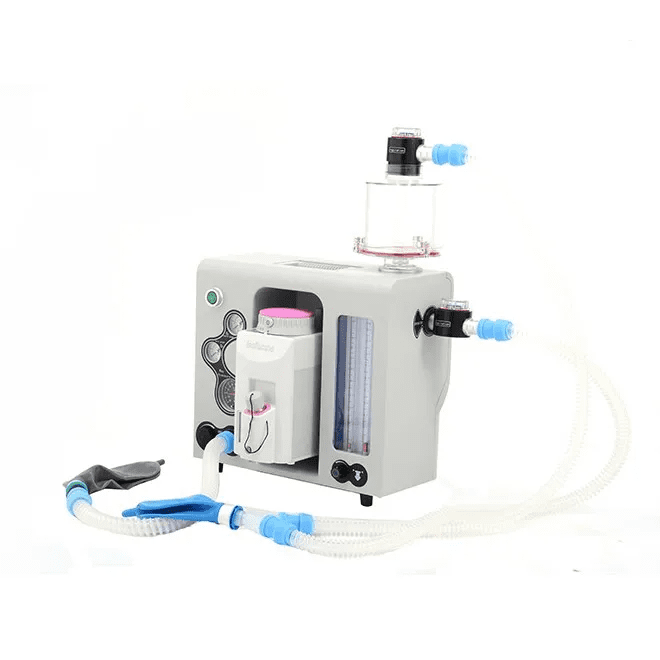

Máquina de anestesia portátil ad/ped

Application: Adult and pediatric( 3kg over)

Ventilation mode: Closed, half-closed, half-open

Tidal volume( Manual Mode):10~2000ml

Gas pressure:0.25~0.65Mpa

Flow meter: Oxygen two tube: one tube:0.1~1,one tube:1~10L/M

APL valve:0.5~6.0Kpa

OXYGEN Flush:25~75L/min

I:E:As the doctor operation

BPM:As the doctor operation

Monitoring: Airway pressure, respiratory mode.

Three gauges: One for Oxygen source pressure

One for oxygen working pressure

One for airway pressure

Concentration range:

Enflurane 0.2 to 5%

Isoflurane 0.2 to 5%

Halothane 0.2 to 5%

Sevoflurane 0.2 to 8%

Flow range:0.2 to 15L/min

0.2 to 10L/min(normal usage)for concentrations>5 vol%

Filling volume for agent:

About 340ml with dry wick

About 300 ml with moist wick
